Our SuessCo sensors at a glance

Our state-of-the-art sensors for motion measurement are setting new standards in measurement technology. Whether bridges, buildings or industrial plants - SuessCo sensors detect movements precisely and reliably. You can therefore rely on our technology for monitoring infrastructures and dynamic systems.

SuessCo 6D sensor

1 Device - measure 6 dimensions

Technology

The SuessCo 6D sensor is the only sensor in the world that can measure 6 dimensions with just one setup. The unique magnetic field technology and the use of AI therefore make it possible to detect absolute changes in position and rotations between two objects. The three spatial axes and the corresponding rotation values are detected and then transmitted wirelessly to a monitoring platform.

With the SuessCo 6D sensor, your digital crack monitoring and bridge bearing documentation is state of the art. It offers a comprehensive solution for motion measurement, ideal for complex monitoring applications.

Advantages:

  • High accuracy and no drift
  • 6 dimensions with one sensor
  • Integrated temperature sensor
  • Long term of 10 years
SuessCo 6D-Sensor Grafik mit Visualisierung der 6 messbaren Dimensionen. Klicken Sie für mehr Informationen über SuessCo Sensoren für Bewegungsmessungen.
SuessCo 3D-Sensor Grafik mit Visualisierung der 3 messbaren Dimensionen. Klicken Sie für mehr Informationen über SuessCo Sensoren für Bewegungsmessungen.

SuessCo 3D sensor

1 Device - Measure 3 Dimensions

Technology

Unique magnetic field technology and the use of AI make it possible to detect absolute position changes between two objects. The three spatial axes (X, Y, Z) are recorded and then transmitted wirelessly to a monitoring platform. It therefore offers reliable results and is therefore the right sensor for motion measurements of all kinds.

The 3D sensor is particularly compact - batteries and antennas are already integrated in the housing. It is the all-rounder and measures displacements permanently, precisely and without drift.

Advantages:

  • High accuracy and no drift
  • Compact design without external cables
  • Simple assembly with high tolerance
  • Integrated temperature sensor
  • Battery replaceable

GNSS sensor system

Capture absolute position changes digitally - with 2 millimeter accuracy

Technology

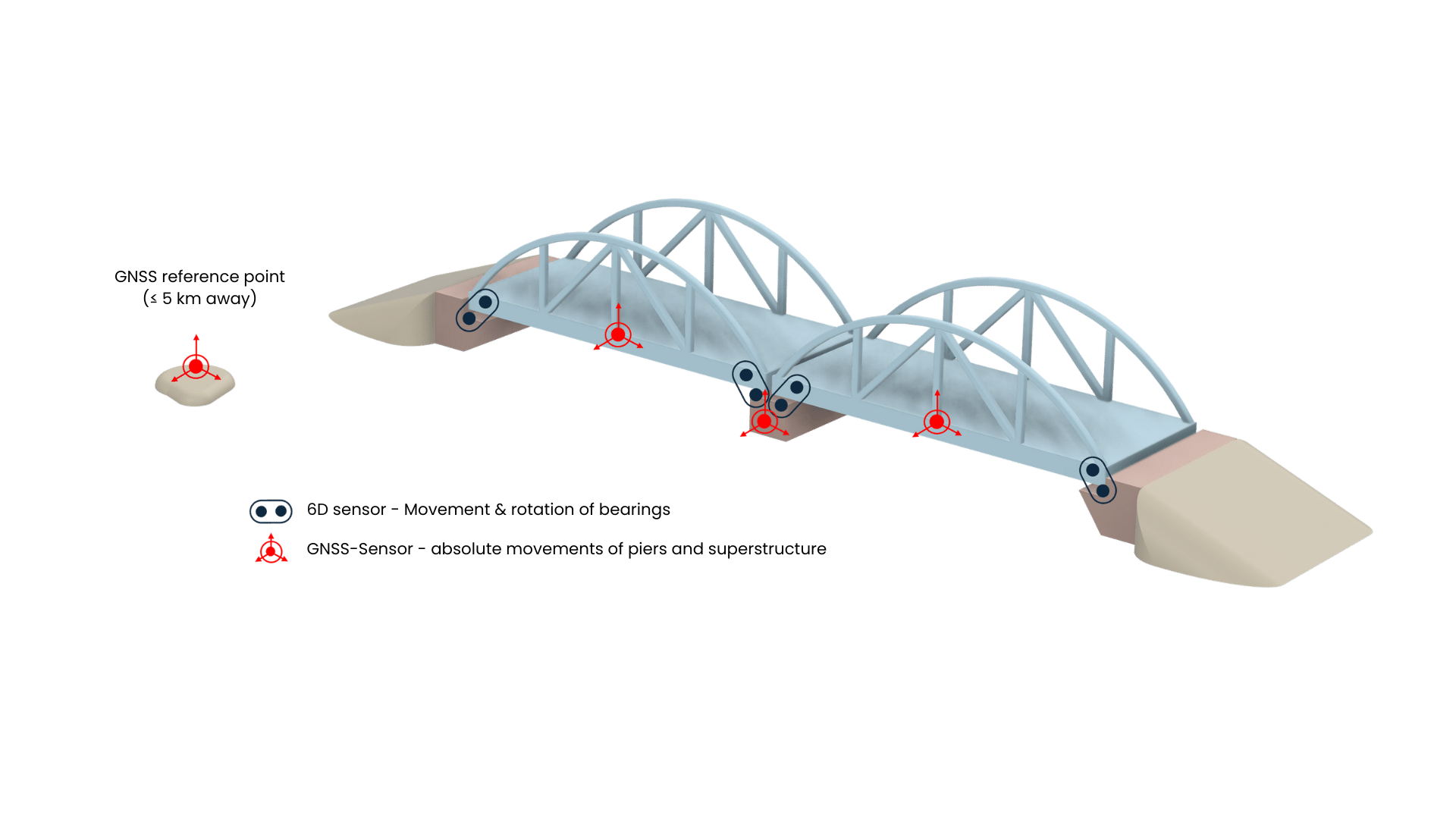

The innovative SuessCo GNSS sensor system enables absolute position changes of one or more objects to be recorded digitally and displayed graphically in a monitoring platform. It is therefore the cost-effective solution for the ongoing monitoring of retaining walls, slope movements, bridges, industrial plants, wind farms and other sensitive infrastructure.

GNSS_de_2
Lückenlose Digitalisierung durch die Erfassung unterschiedlichster Parameter, der Korrelation und Analyse von Daten sowie der Darstellung in einem übersichtlichen Dashboard. Wir integrieren und kombinieren verschiedenste Sensor-Messgrößen, für jede spezifische Monitoring-Herausforderung.

SuessCo Datahub

Your user-friendly dashboard. All measured values clearly displayed at all times. Configuration for alarm values.

Assembly in 4 steps

6D-anleitung explosion_Teil1_zoom

Install reference object

Step2

Install the sensor

6D_screwed

Connecting the battery cable

Im 4.Schritt werden digital in einem Dashboard die Daten visualisiert

Analyze data

The SuessCo advantage: Flexible and simple installation

Our sensors can be mounted in just a few steps - without any time-consuming preparation or precise calibration. All you need are two screws for the reference object and two for the sensor - that's it! Anyone can install the sensor without any special tools or technical expertise. Once installed, the sensor measures with the same precision, regardless of who installed it.

See the simple and flexible installation for yourself - in our short video we show all the installation steps in detail.

youtube-video-thumbnail
You can also follow us on YouTube!
youtube-video-thumbnail
You can also follow us on YouTube!

Thanks to the sophisticated design, the reference bracket can be mounted both above and below the sensor. This opens up a wide range of mounting options - even in difficult structural conditions or on irregular surfaces such as rock, natural stone or coarse concrete.

The sensor is ready for use in just a few simple steps. It can be attached to solid structures as well as to moving or separate structures - for example, crack monitoring, crevices or expansion joints. The installation can therefore be individually adapted to your needs and flexibly adapted to any conditions.

What our customers say

"The SuessCo 6D sensors have enabled us to safely and efficiently monitor a damaged building alongside driven pile work. The continuous provision of data at 15-minute intervals has not only increased safety, but also provided a reliable basis for decision-making. We are highly satisfied with the performance."

Foto von Martin Zohren, einem Diplom-Ingenieur im Vermessungsbüro Felshart

Martin Zohren

Graduate engineer, Felshart surveying office

SuessCo Sensor beim Riss-Monitoring, montiert auf einer Wand

SuessCo Sensors: The leading specialist in magnetic field sensors

Our globally patented 3D/6D sensor uses the latest technology for crack documentation and bridge bearing monitoring. All sensor data is transmitted wirelessly and displayed in a user-friendly way in the SuessCo Datahub. Innovative monitoring not only saves costs, but also simplifies documentation, increases safety and extends the service life of infrastructure. With our sensors for motion measurement, we offer you a future-proof solution for the precise monitoring of your infrastructure.
