Central Europe
Historic building
3D sensor, 6D sensor, GNSS sensor

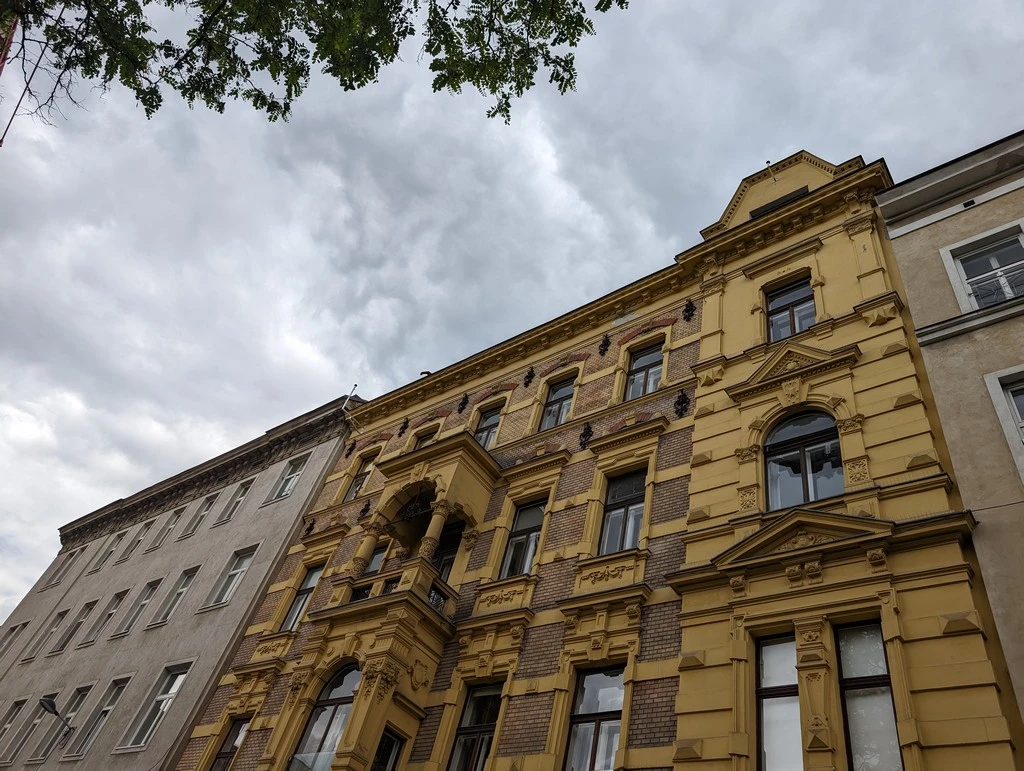

In a major European city, a multi-story residential building is showing signs of structural damage. This damage is caused by subway construction, tunneling, and the lowering of the water table. Subsidence in the subsoil is also causing the building to lean. As a result, cracks are running across several floors at the junction between the old and new sections of the building.
By taking these measures, the property owner ensures the building’s safety. At the same time, the owner monitors any damage and secures legally admissible evidence regarding the causes of the settlement. These measures provide residents who are concerned about the stability of their living space with a sense of security.
The monitoring system continuously and accurately tracks the building’s movements. This allows for the early detection of further damage and the identification of its causes. Particular attention is paid to visible cracks in the stairwell and the metal structure of the elevator shaft. These are critical to the safe operation of the elevator. The sensor data is available online at all times so that the situation can be continuously assessed. Experts responsible for this task evaluate the data on an ongoing basis.

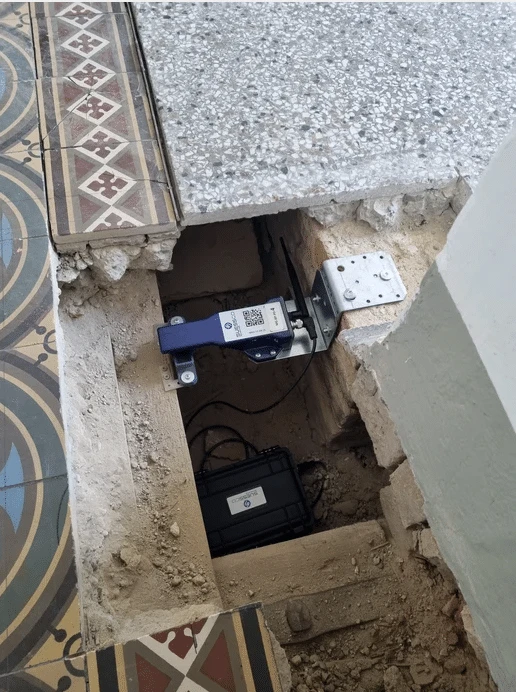

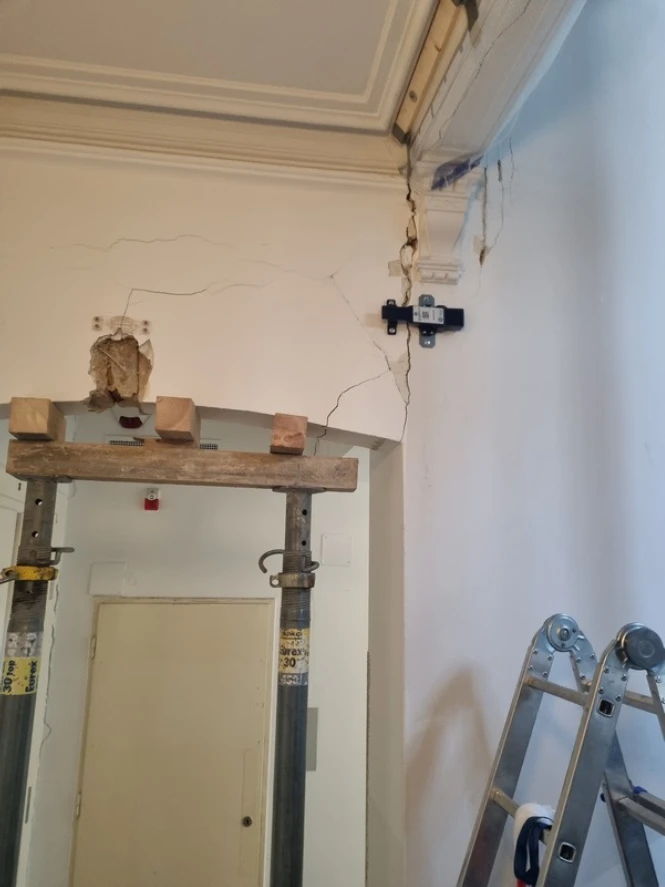

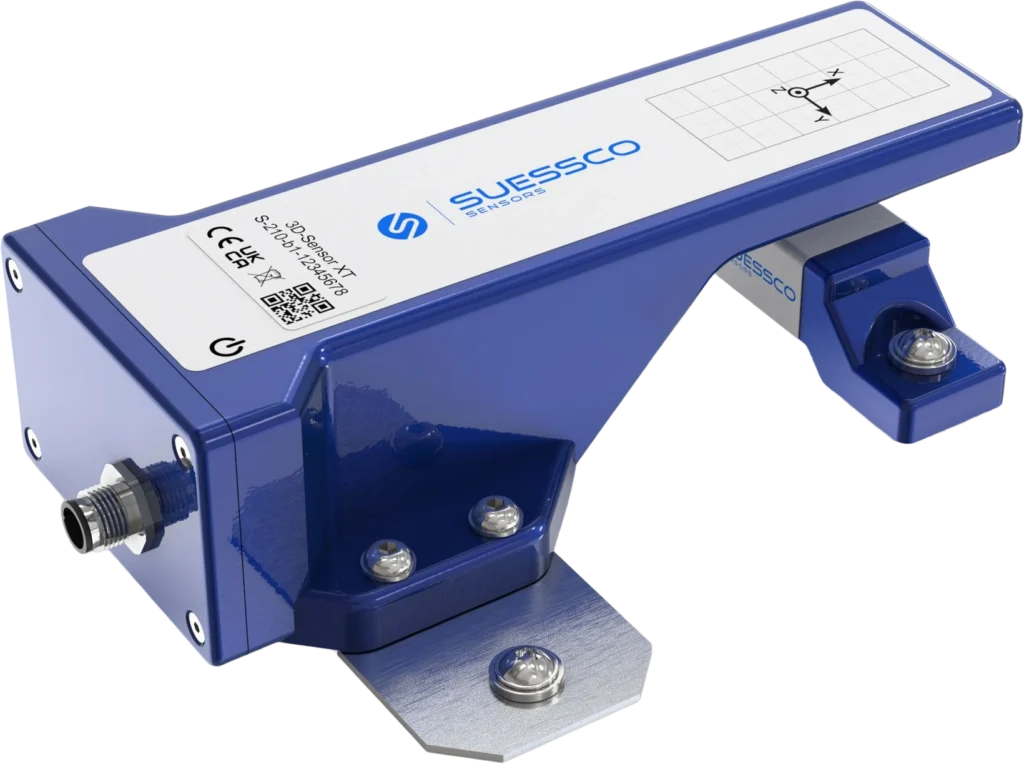

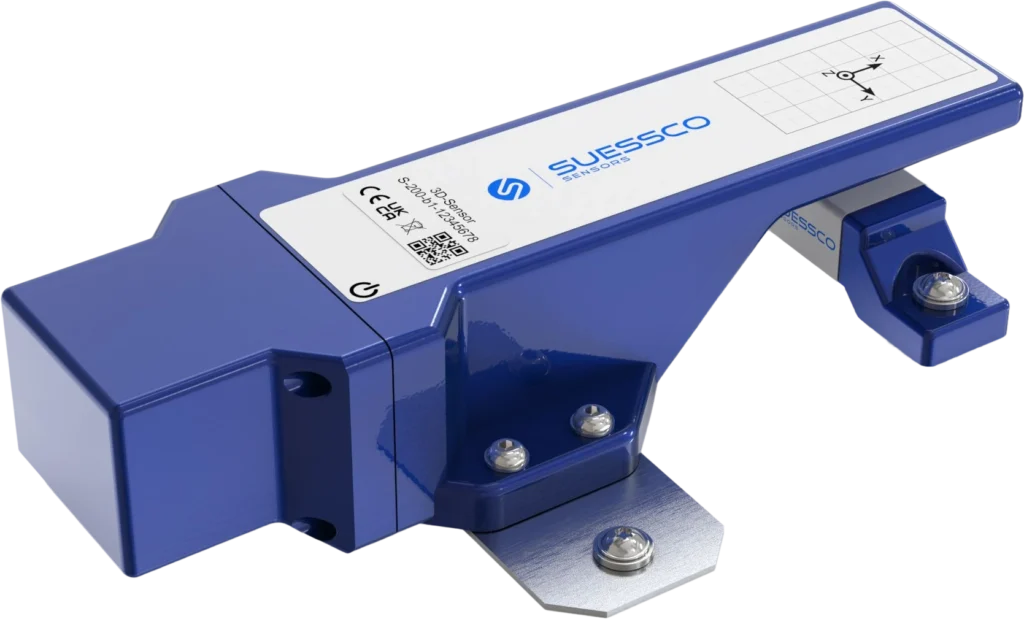

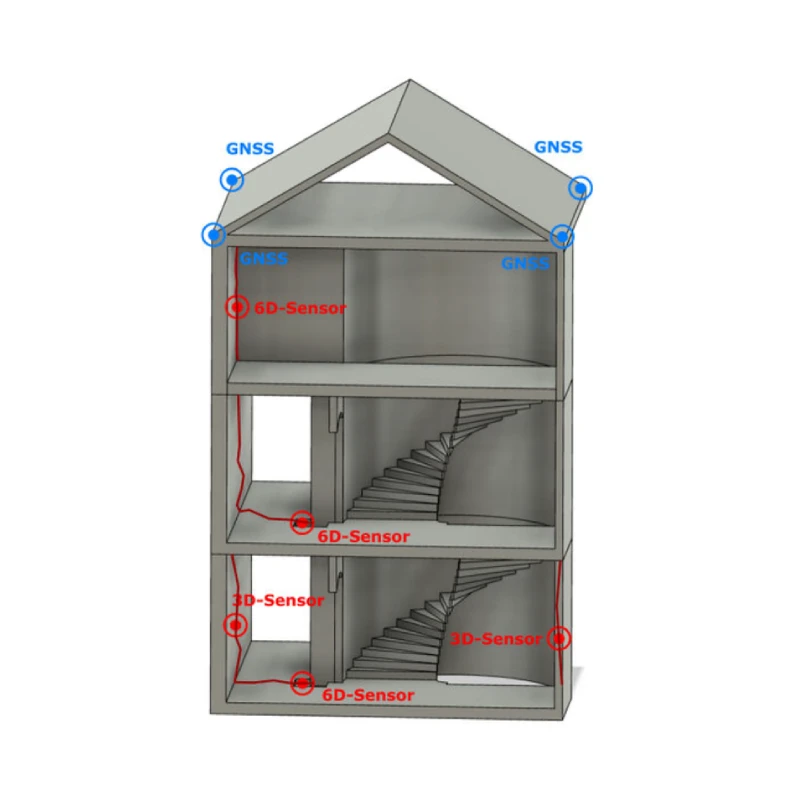

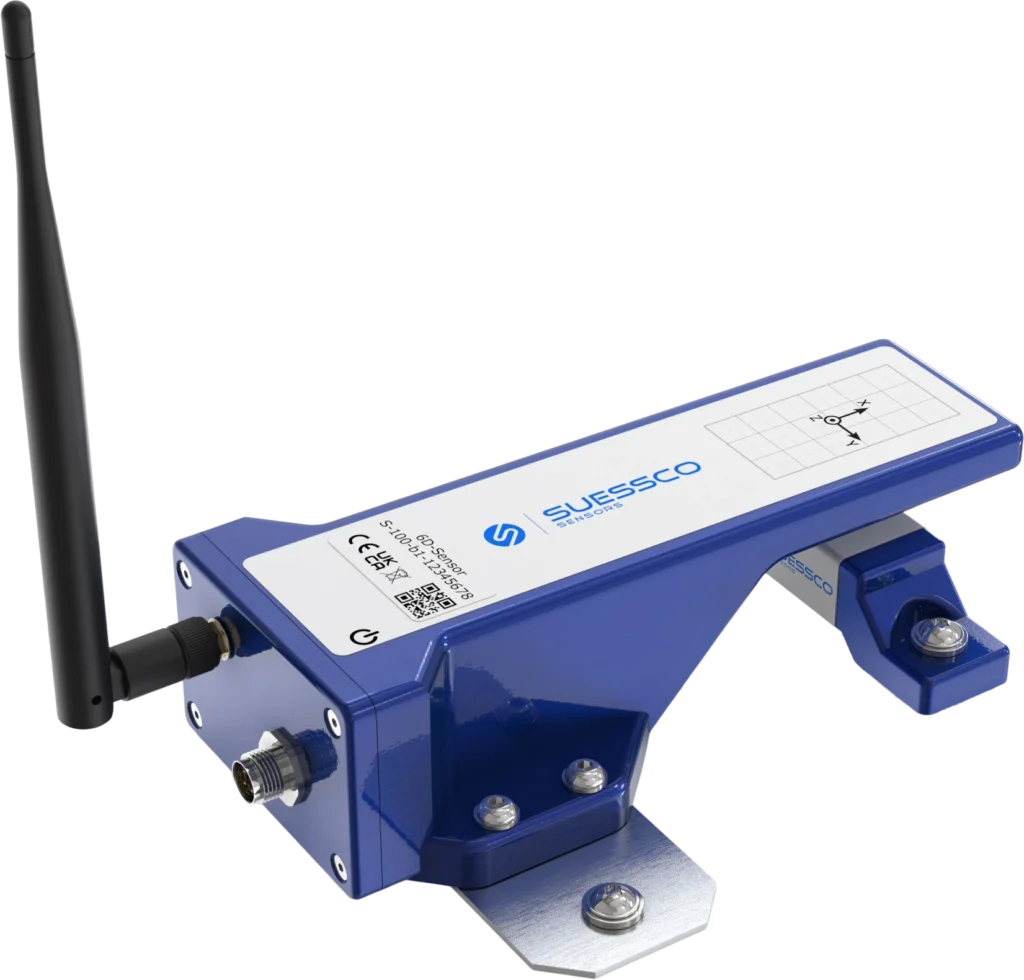

A structural engineer analyzes the situation and determines the optimal locations for the sensors. Based on his structural analysis, two SuessCo 3D sensors are installed in the stairwell. These sensors monitor the movement of the walls and the progression of cracks with micrometer precision. In addition, three 6D sensors are installed in the floors of the intermediate levels and in the attic.
The sensors continuously transmit data, which is stored in the SuessCo Datahub and presented graphically. The structural engineer has direct access to this data and can therefore perform real-time analyses. This allows them to immediately detect changes in the structure’s stability and respond appropriately.
Round-the-clock monitoring gives residents greater peace of mind. It ensures that potential hazards are detected early on. At the same time, the solution helps property owners manage damage and enforce their legal claims.
This project is an example of how digital monitoring projects help ensure the safety and stability of structures.
